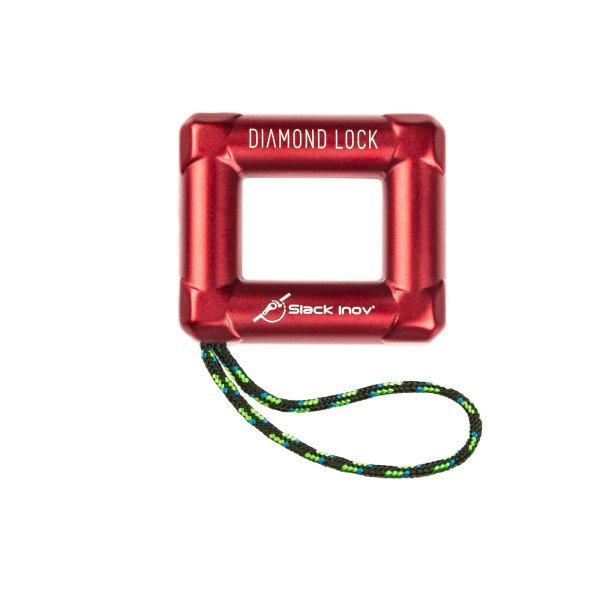

Diamond Lock Linelock
High-strength webbing locking ring
Innovative shape that gives DIAMOND LOCK unprecedented strength and an optimised fit to all of the webbing widths. Excellent for static terminals, backups and longlines.
Material: 7075 anodised aluminium alloy;
Compatible webbing: 17 - 25 mm thick;
Webbing strength retention: from 85% to 65% of MBS (stated in webbing features tab);
Weight: 43 g.
High-strength webbing locking ring
Innovative shape that gives DIAMOND LOCK unprecedented strength and an optimised fit to all of the webbing widths. Excellent for static terminals, backups and longlines.
Material: 7075 anodised aluminium alloy;
Compatible webbing: 17 - 25 mm thick;
Webbing strength retention: from 85% to 65% of MBS (stated in webbing features tab);
Weight: 43 g.
The most versatile webbing locker
The DIALMOND LOCK is not only super light compared to a weblock, it is also super intuitive to use and no risk of using a spare part, like a pin.

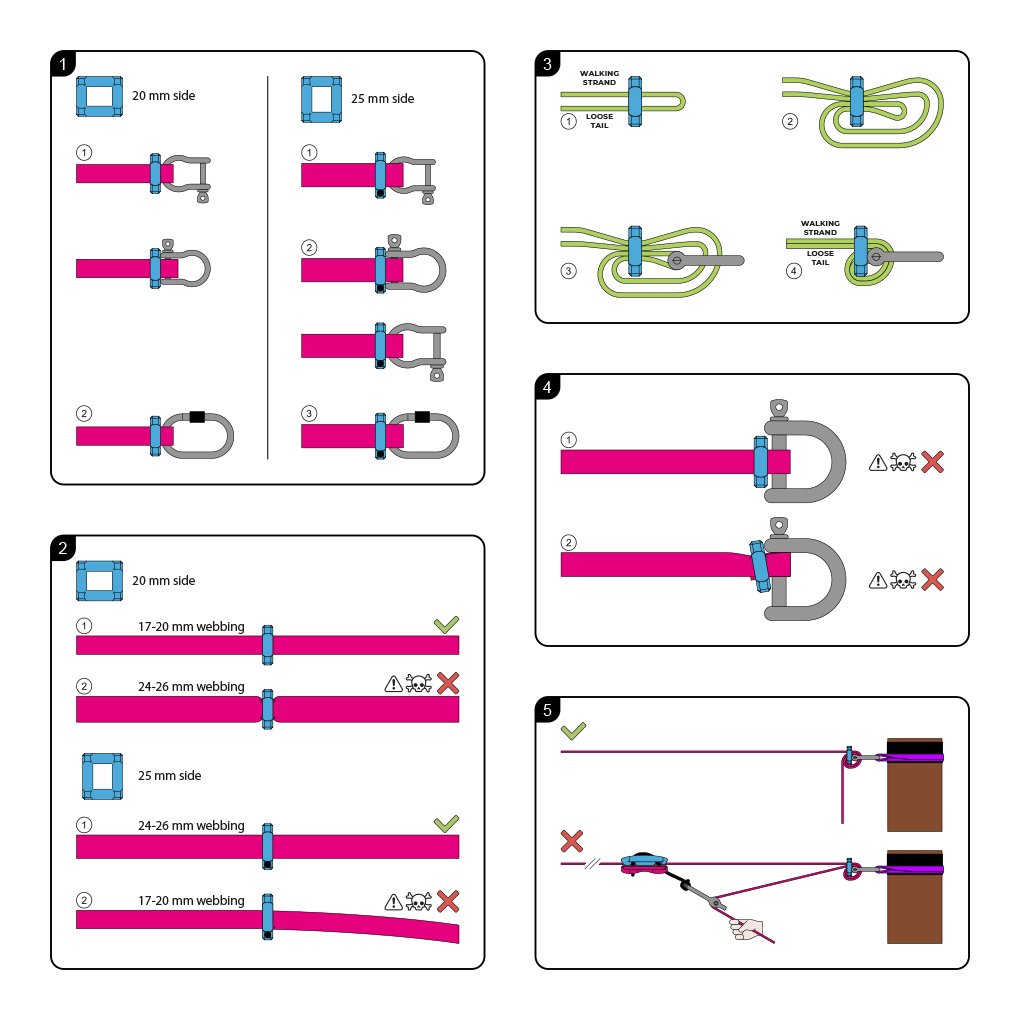

We recommend using the DIAMOND LOCK for the following scenarios:
Instead of a knot to block and attach your Highline BACKUP webbing (17-20mm webbing or 24-26mm wide webbing)
In a PRIMITIVE set up for a park slackline session
As a static Longline end BLOCKER, if your webbing is not equipped with endloops
A Linelock that maintains the strength of the webbing
Some traditional ascenders can reduce the strength of the webbing by up to 30%, risking damage to the line. Our DIAMOND LOCK is the ideal locking ring as it is designed to maintain the strength of the longline by up to 85.
Optimised and compatible shape
Thanks to its square shape, DIAMOND LOCK is compatible with the shackles most commonly used by slackliners. When used on the 25 mm side, it is compatible with the pin of standard 12 mm shackles. When used on the 20 mm side it is compatible with the pin of standard 10 mm shackles and any standard 25 mm shackle.
